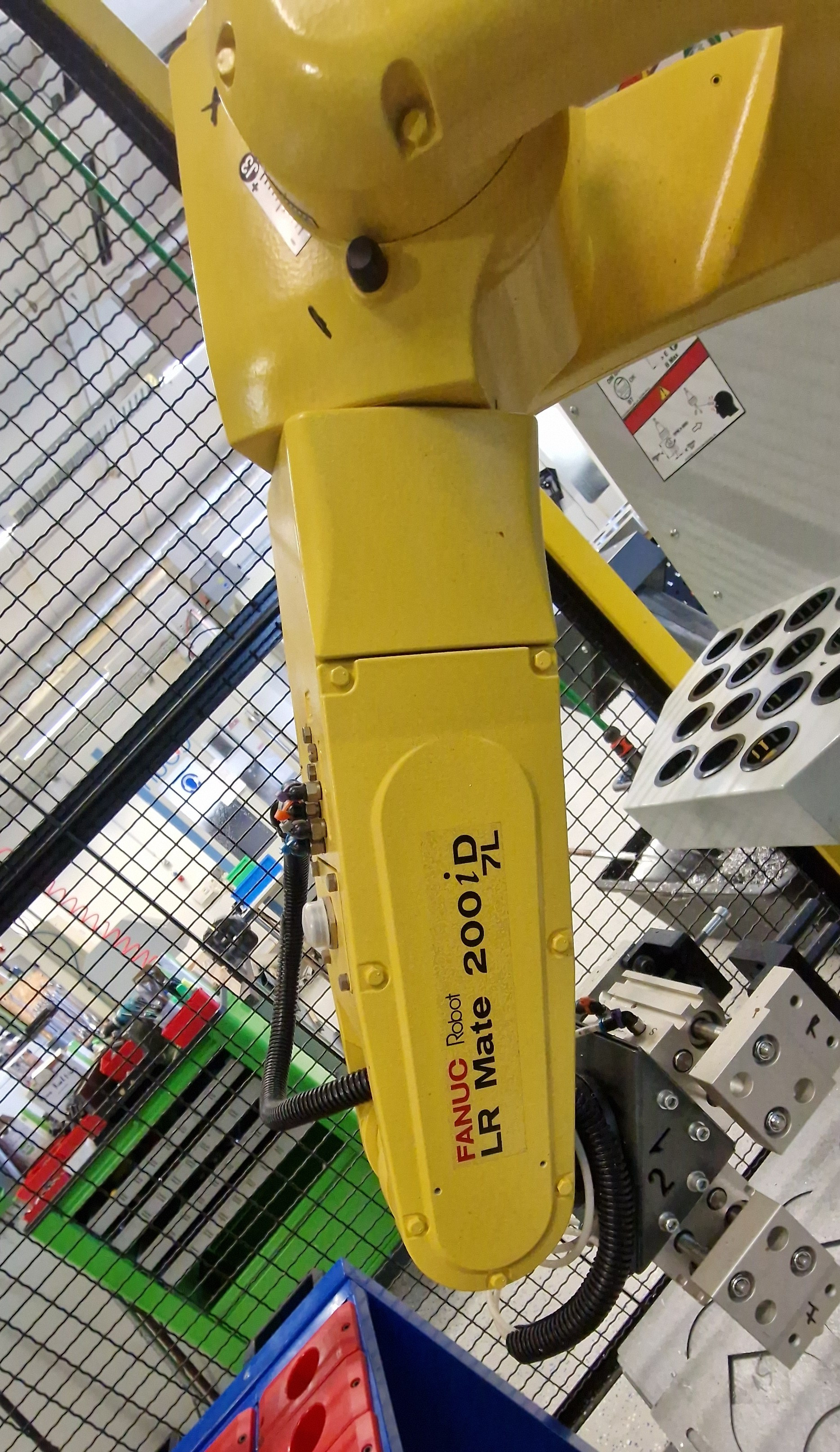

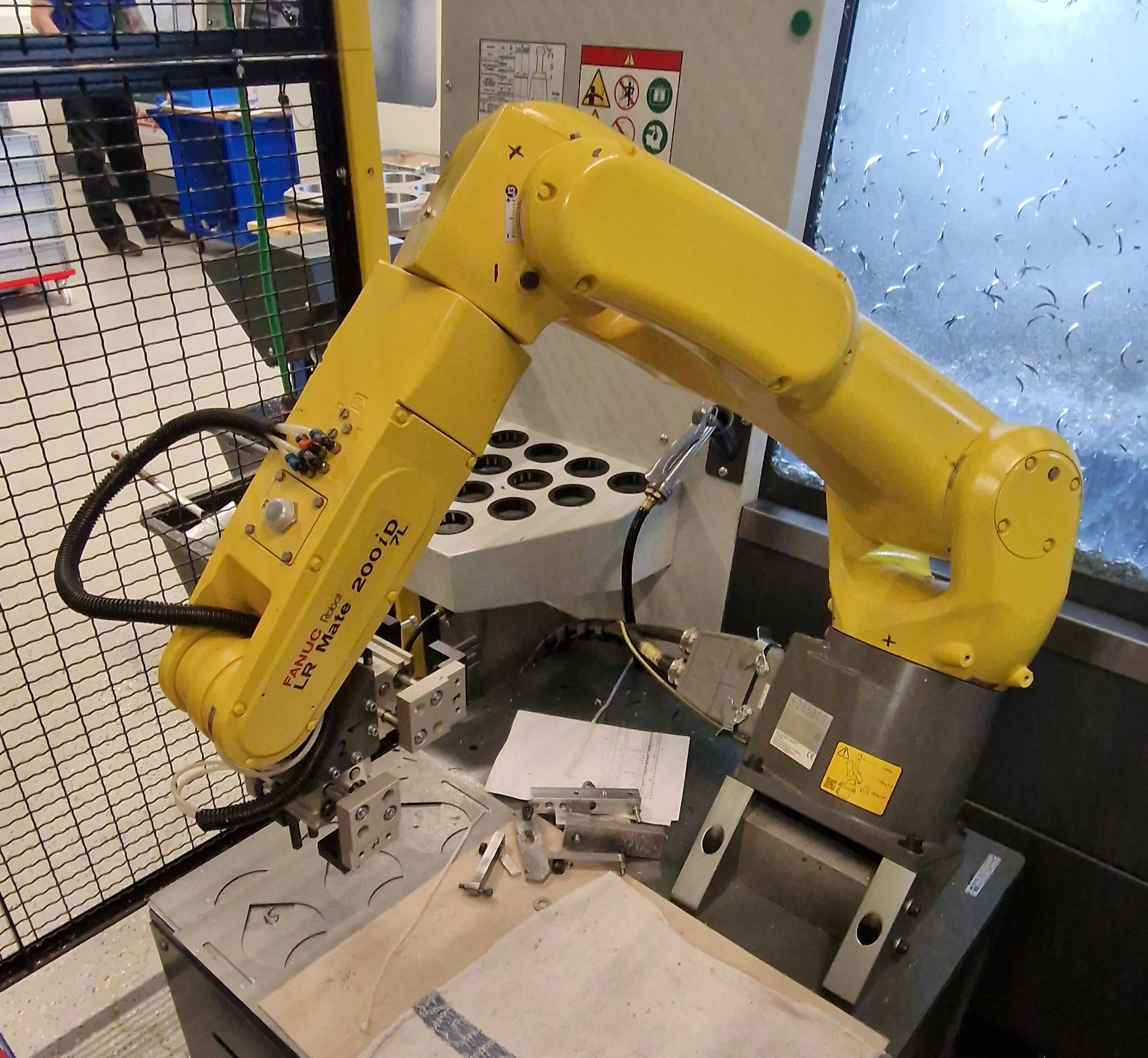

The LR Mate can handle loads of up to 7 kg with a reach of up to 911 mm. Ideally suited for a wide range of handling applications.
Number of axes: 6
Repeat accuracy (mm): ± 0.01 (based on ISO9283)
Weight (kg): 27
Working range (°) / axis speed (°/s):
A1: 360 / 370
A2: 245 / 310
A3: 430 / 410
A4: 380 / 550
A5: 250 / 545
A6: 720 / 1000
A4 Torque / inertia (Nm/kgm²): 16.6 / 0.47
A5 Torque / inertia (Nm/kgm²): 16.6 / 0.47
A6 Torque / inertia (Nm/kgm²): 9.4 / 0.15
