Zhafir Venus 400 - 6500 kN Flexible, full-electric solution
Zhafir Zeres Serie 400 - 5500 kN Electric machine with hybrid solution for nuclear function
Haitian Mars III Serie 600 - 10000 kN Joint clamping
Haitian Jupiter Serie 4500 – 66000 kN 2-plated clamping
The CNC robots in the SMART series are the ideal partners to automate standard processes for injection moulding of thermoplastics. The optimisation of the manufacturing techniques combined with the choice of the best components allows exceptional value for money to be achieved.
The MICRO CNC robot respond in a flexible and economic way to the most demands in the small injection moulding machines. The Free Guided Programming (FGP) capability, that all TecnoMatic robots have, makes it possible to realise extremely flexible work cycles with no limitations to program complexity or length; all the various operations are very simple.
Side entry robots allow certain problems to be solved that may occur in plastic moulding and which cannot be performed using traditional top entry robots.

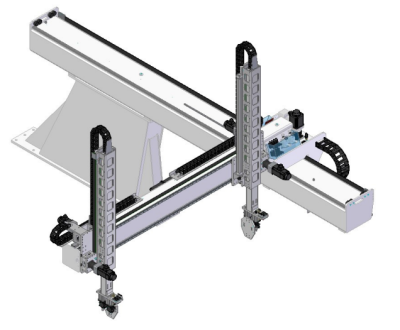

The high performance linear robots of the STEEL series represent the culmination of over 30 years of activity by TecnoMatic in plastics moulding automation. This series is the result of constant evolution both as regards the mechanical and electronic parts. The high speed, vibration control and high load capacity place this series at the highest technological levels.
Hilectro robots are the ideal partners for automating standard injection molding processes. The optimization of production techniques combined with the selection of the best components enables an excellent price-performance ratio.
Hilectro robots are the ideal partners for automating standard injection molding processes. The optimization of production techniques combined with the selection of the best components enables an excellent price-performance ratio.
Drying of hygroscopic plastic materials for small throughputs. directly on the processing machines.
The SPARK and PIRANHA model manipulators have both been designed mainly to extract sprues from moulds: using these devices allows both the automatic separation of the sprue, as well as the immediate recycling of the material. Moreover it is guaranteed that the sprue will not remain inside the mould when it closes.
Maguire Vacuum Dryers are proven to dry polymers in a fraction of the time and with 60% less energy than desiccant dryers
The compact driers for smaller throughputs are cost efficient models. They work on time related regeneration for the drying agent and could handle drying silos from 100 to 400 litres.
The new dryer generation 2.0 by SIMAR features optimized energy effiency and an improved reliabilitiy of opration. The eDry combines these advantages with innovative control elements, which mirrow the straightforward controllabilitiy of the operation data. .

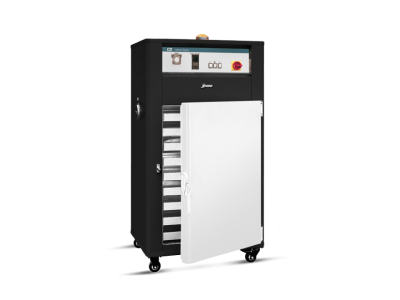

Accurate P.D. temperature control to achieve an even drying effect. Air-proofed insulative door can maintain temperature constantly inside to reduce energy consumption. Stainless steel tray and liner bring no contamination to materials.
The dryers allow 40% consumption savings because they work at a low temperature and they are equipped with a special mechanism that protects the material from possible oxidation and / or overdrying.
Maguire Vacuum Dryers are proven to dry polymers in a fraction of the time and with 60% less energy than desiccant dryers
Crystallization The crystallization of PET PET - a semi-crystalline thermoplastic - is used in the production of high-quality bottles, films, fibres, tapes and other products. Depending on its subsequent use, its hygroscopic characteristics mean that this material must be dried at a temperature of 130°C to 180°C over a period of 4-6 hours before being thermally processed.

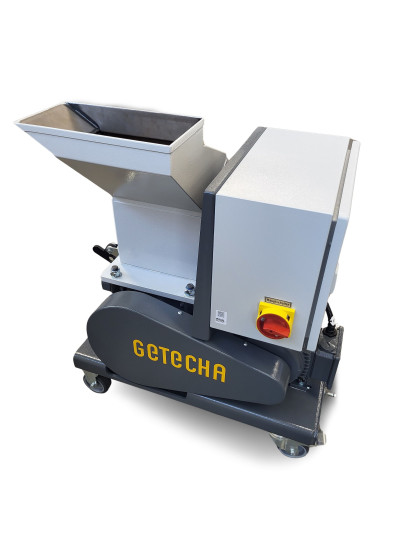

Small, compact, in high-grade steel The RS 100 of GETECHA can be installed directly in the ejection chute of the injection moulding machine. Outstandingly well-suited for granulation of small sprues. Also for laboratory applications.
Better slanted, well-tried thousandfold Into the large intake and then into the tilted rotor. There every kind of granulate is reliably granulated. The GRS granulators run in peak operation right from the start. prues of all kinds and small faulty parts are ground economically and quietly – adapted to your granulation need. The large cutting chamber opening in combination with the angled rotor makes the size reduction of bulky sprues possible. The GRS granulators can be equipped and adapted individually. Both models are available with low or high built frame. It is also possible to realize various rotor types or drive capacities. Tell us your application needs.
Diversity by request As unique as the place of use: The granulators can be equipped and adapted individually. For example, with hoppers and material containers depending on the task at hand.
Productive residue recycler The compact central granulators of the new RS 2400 series have been specially designed for hourly throughputs of up to 220 kg and can be installed in the vicinity of the production lines.
Mid-market with a punch The ergonomically constructed granulators attain throughputs of up to 500 kg/hr in continuous operation depending on the model - whether in injection moulding operations or next to blow moulding machines.
Diversity on request The RS 3800 series is the logical refinement of the well-proven RS 2400 and RS 3000 and offers the same advantages. It is flexible in use thanks to various rotors, hoppers and peripheral equipment.
Devours large volumes quietly With the aggressive intake zone in the cutting chamber, seizes even thick-walled stock outages or large hollow shapes reliably; the noise level remains low.
True greatness, tailor-made The successful central granulator for all areas of plastic granulation. Unbeatable when it comes to granulation of large parts in the injection- and blow moulding sector. Makes short work of scrap web rolls, extruded plates, bumpers, thick-walled pipes or extruder scrap.
Even more of everything, for everything The biggest of the big. When tonnage is what counts, the RS 8000 is the granulator of choice. Equipped with an automatic feed system and regrind transport, it becomes a high-performance granulating center. A high level of automation simplifies maintenance and ensures high economy.
The FSA type separator is a screw separator with its own drive and is mainly used for the separation of injection molded parts and sprues

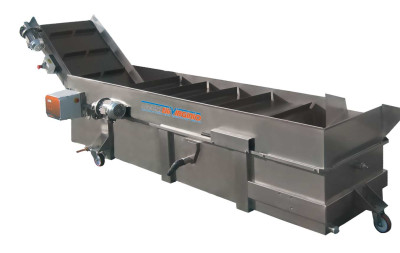

Cooling conveyor in stainless steel designed for cooling of medium to large size of moulded products with different density
Filling conveyors are particularly suitable when it comes to the automatic filling of containers or cardboard boxes. This enables a smooth container changeover without causing machine downtime.

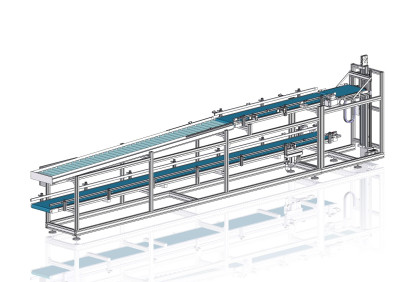

If there is a greater need for buffers, or if empty and full containers have to be loaded and unloaded on the same side, tiered storage systems with a lift are the ideal solution. In this way, the empty containers can be buffered on one floor and the full containers on the other floor.
Versatile system easy to assemble. Available in a wide range of combinations and sizes. Standard version has: structure in aluminium profiles, and galvanized steel rollers diam. 35mm. It can be use for different production sectors: material handling, packaging (food, pharmaceuticals…). Possibility of various solutions with motorized rollers.
Our tray stacking systems are similar to the BAKs. The empty tray stacks are fed in the empty area, separated in the destacking lifter and fed to the filling by the robot. After filling, the trays are stacked again and can be removed as full stacks in the full area. Tray stackers are configured by us on customer request in the most different variants, also e.g. with cross transfer or with lifter system as tier system and many more.
The turntable for automatic filling of boxes, containers or cartons. The containers are filled via a conveyor belt or a chute. Through the control in the turntable, a container change can be done by counting the parts or by setting a certain time. If a box or a carton has reached the number of pieces, the turntable automatically moves to the next container. The turntable can also be equipped with two levels. This causes a doubling of boxes / cartons.
The sorting chute is used to fill boxes, containers and boxes. The integrated control in the chute can initiate targeted indexing by counting the parts. If a box has reached the specified number of pieces, the sorting chute automatically moves on to the next one.
The MCBalance is the highest standard in gravimetric dosing. It proves its value on a daily basis in all branches, under all circumstances in injection molding, blow molding and extrusion. The dosing cylinder and patented weighing technology ensure extremely accurate dosing, even when low dosage rates are required. In this way, high savings on expensive additives can be achieved. The continuous loss-in-weight measuring feature and automatic motor speed adjustment are key to a stable production process. This guarantees high quality end products and fewer rejects.
Reusing rejects and sprues in the form of regrind can result in saving substantial amounts of colorant. The secret? Dosing masterbatch, powder, liquid or another additive and regrind simultaneously. One dosing unit of the MCTwin functions as the master unit and doses regrind, while the second operates in conjunction with the master unit and doses the additive. In practice this means that the more regrind is available, the less colorant is added. This enables you to avoid overconsumption of additives and to reuse the maximum of regrind. The process is fully automatic, so you always dose the maximum percentage of available regrind. The quality remains constant, production run after production run, 24/7.
Home Products Gravimetric dosing MCHybrid 30 MCHybrid 30: the best of dosing and blending in one system The MCHybrid 30* is a unique dosing concept that combines two technologies into one system: batch blending and in-line dosing. The main materials or regrinds are mixed in an extreme compact gravimetric batch blender. Because the system only blends the main materials, the blending speed is high and therefore the batch blender remains small. The additives are dosed gravimetrically in-line, directly on the throat of the injection molding machine or extruder. By using these two blending and dosing technologies in one machine, you are able to control the main materials in any given ratio and at the same time dose additives at low percentages with unequalled accuracy.
Dyeing with liquid can be a challenge. It all depends on reliable dosing, often with extremely low dosing quantities. The most important issues are changes in the viscosity of liquids and leak-proof use. Movacolor has developed a modular liquid dosing system with a universal motor unit, two types of pumps and several leak-proof packaging concepts. This offers you the possibility to assemble the optimal configuration
MCPowder Dispensing powder is one of the biggest challenges in the dispensing field, especially when we are talking about heavy flowing powders in extremely low quantities. Expensive powder additives that have a big impact on your process require the best for precision and reliability. Based on its proven gravimetric technology, Movacolor has developed a compact powder dosing device precisely for this. It is able to dose very low with 100g / h, but also allows high dosages of up to 40 kg / h. The double spiral and funnel movement ensures problem-free dosing of the most difficult powders. And that applies to both injection molding and extrusion applications.
The revolutionary MCNexus is the new standard for dosing extreme small amounts of masterbatch. It is an ultra-compact dosing unit, able to dose pellet by pellet masterbatches or additives in various shapes and sizes. The working principle is simple. A standard compressed air supply creates vacuum via an air cardridge. A dosing disc captures the individual pellets piece by piece. Optional feature on the MCNexus is a mini hopper loader or a mounting bracket for air components (Air on Deck). Finally, the pellet is discharged with the same compressed air. Result: counting pellets with 100% accuracy. To reduce the number of components the MCNexus is manufactured by 3D printing. This gives the opportunity to customize the connection to the production machine.
Advanced mixing systems are often considered complete factory-developed solutions. Movacolor has developed a unique modular system that allows you to assemble a fully gravimetric, cohesive mixing system. Up to 15 components can be controlled by one control unit. These systems can be installed on one extruder or on multiple coextruders, creating a control platform for multiple interconnected mixers in one system. This system grows with your future needs.New components can be easily integrated without changes to the control unit. The MCContinuous Blender can handle most of the available materials, such as granulates, regrinds, powders and liquids.
The MCNumera is a modular measuring device which measures the consumption of main material in a production process.
Dosing powder is one of the most difficult tasks in the field of dosing. For your process, stability and quality control, as well as precise and reliable powder dosing, are often essential. And this under all circumstances.
The MCWeight is specifically designed to measure the actual filling capacity of an extruder. It has an integrated weighing module to accurately measure throughput and an integrated gate valve to control filling. Combined with one or more Movacolor devices, the MCWeight follows even the smallest capacity changes of the extruder. It adjusts the dosing of additives from the metering units accordingly. Dried material with a temperature of up to 180°C can be processed with the MCWeight.
The MCWeight P is designed to measure pourable powders, such as PVC dry mix. The MCWeight P can also be used for granular materials or castable regrinds containing dust. The design of the pneumatic blade opening is dust-tight. The sleeves are dust-tight, and there are additional dust filters for powder processing.
The MCHigh Output is the gravimetric solution to dose high capacities from 50 kg/h up to a maximum of 1,200 kg/h. The system meters this high additive output without making any concessions to precision. Gravimetric technology makes this possible for both injection molding and extrusion applications.
The MCHigh Output 2500R is a complete system that can fill low bulk density regrind at high feed rates. The unique design with a maximum mixing rate of 75% can be mounted directly on an injection molding machine or extruder. Gravimetric technology controls the metering rate and provides accurate material consumption data for traceability.
The MCHybrid 200 is a very compact and reliable batch blender, specially designed for processing a wide range of materials and regrind with a low bulk density. The MCHybrid 200 has a modular design and can be equipped with 2 to 8 components. The hoppers, made of robust stainless steel, with drains allow 100% emptying of the hoppers. With our unique valve design, even small components can be dispensed with an accuracy of up to 0.02%. The mixing chamber is equipped with a load cell, eliminating the need for a sensor. The weight mixing chamber can be used to measure the extruder throughput. The standard version of theMCHybrid 200 is suitable for processing materials up to 120 °C. A high-temperature version is also available that can process material up to 180 °C. If you want even more accuracy and flexibility or are looking for a compact design, you can also combine the MCHybrid 200 with our gravimetric inline metering units to get a unique hybrid blender.
The MC12 is together with the MC18 and MC30 our showpiece in volumetric dosing. These dosing units have proved their value since Movacolor started. The units are installed in factories all over the world and can operate under almost any conditions. Depending on the material, the unit can be tailor-made for dosing free-flowing powders, regrinds or normal granulates. The units add additive on the basis of volume. The MC12 unit is controlled by rpm setting. The Movacolor dosing cylinder® in combination with the stepper motor ensures maximum control with no stoppages or pulsations. The MC12 Economy volumetric in-line dosing unit is the entrance model of all Movacolor dosing systems for injection molding or extrusion.
The MC30 is together with the MC12 and MC18 our showpiece in volumetric dosing. These dosing units have proved their value since Movacolor started. The units are installed in factories all over the world and can operate under almost any conditions. Depending on the material, the unit can be tailor-made for dosing free-flowing powders, regrinds or normal granulates. The units add additive on the basis of volume. The MC30 can be pre-calibrated to dose at percentage rates. The Movacolor dosing cylinder® in combination with the stepper motor ensures maximum control with no stoppages or pulsations. The MC30 can be equipped with an automatic hopper loader for automatically filling the stainless steel hopper.
Sicherheitsvorhang verhindert das Unkontrollierte springen der Teile aus dem Werkzeugraum.
MCMicro is an ultra-compact dosing unit, especially developed for small injection molding machines. Its small size and the accurate stepper motor drive enable you to dose additives in-line on the smallest machines on the market. You can use the MCMicro for normal granulates and micro granulates. It is equipped with a quick release coupling, allowing easy color change. For different small injection molding machines we have adapters available. The MCMicro comes with a MC12 controller. The masterbatch hopper has a volume of 200 ml. The unit can also be supplied with an optional integrated hopper loader for the main material and MC18 controller. The main material hopper can contain 1.8 liter.
Maguire's proprietary technology has contributed to being the world's largest supplier of liquid color pumps. For all molding and extrusion applications Accurate peristaltic dosing Easy to set up
Air cooled industrial water oil chillers, with cooling capacities from 3,5 to 10 kW designed for various applications such as machine tools, high speed spinale, EDM machines, laboratory apparatuses. Chillers suitable for the cooling of different fluids such as glycol and water mix, hydraulic oils, cutting fluids.
MRS industrial quality chillers are available in cooling capacity range from 13 to 75 KW, with water working temperatures from 0°C to 25°C and suitable for indoor or outdoor installation. The standard configuration is designed for an ambient temperature up to 45°C.
Modular air-cooled centralized industrial refrigeration plants with cooling capacity from 430 to 880 kW, suitable for outdoor installation. Centralized refrigeration plants models with two refrigeration circuits and two semi-hermetic screw compressors which may be used as a single unit or which can be installed in parallel for higher capacity cooling systems.
Modular air-cooled industrial water chiller, with cooling capacities from 60 a 604 kW, suitable for outdoor installation, equipped with stainless steel water pump, pressurized vessel, stainless steel plate evaporator, axial fans. Models with one, two and four compressors, with one or two refrigeration circuits.
Water industrial refrigeration systems Modular air-cooled industrial water chillers, for indoor and outdoor installation, equipped with high priority centrifugal fans. The UNI chillers series consists of one compressor, the TWIN chillers series of two compressors and two indipendent refrigeration circuits, the MULTI chillers series of four compressors and four indipendent refrigeration circuits. Water industrial refrigeration systems with cooling capacities from 31 to 404 kW.
Air-cooled modular industrial chillers free-cooling, with cooling capacities from 11 to 56 kW, suitable for indoor and outdoor installation; complete with stainless steel water pump, pressurized vessel, stainless steel plate evaporator, axial fans. Free-cooling chillers characterized by a very small footprint, particularly suitable for installation close to the processing machine.
Water molds compact temperature Controller Mikrobox for operation up to 90°C, equipped with reversible pumps. The compact design of this temperature control unit ensure reduced overall dimensions. Two wheels in the back enable easy move also in narrow spaces. Indirect cooling with large surface finned coil which grants high cooling capacity .
Pressurized water mould temperature controller with operating temperature up to 140°C. The pressurized temperature controller is equipped with high pressure/high flow pumps . The pressurized temperature controllers are available in the version with one heating element and in the version with two heating elements.
Oil temperature controller to operate up to 190 °C (TBH-OH series) and to operate up to 250°C (TBH-OHT series). Polymers such as PTFE, PEEK, PSU, PPS, PES, LCP, PEI require much higher mould temperatures than other materials. This oil temperature controller is also suitable for various applications: extrusion, food, chemical etc.
Water temperature controller available also in oil and water/oil versions, equipped with open tank, suitable to operate in pressure or in vacuum mode with working temperatures up to 90°C (water) or 150°C (oil). This temperature controller is available in various models: temperature controller with one heating element (TB-S), or with two heating elements and automatic partialization (TB-M), or temperature controller with double zones of thermoregulation (TB-D).
Dynamic temperature controller that use rapid alternation between cold water flows and pressurized hot water flows. The dynamic temperature controller Dual T rapidly sends in alternation water flows at different temperatures (hot flow max. 180°C and cold flow min. 8°C). This temperature control unit allows for the injection of plastic into the preheated mould using the hot water flow (obtaining the maximum quality moulded part). Subsequently, by introducing cold water into the mould, it allows to quickly extract the piece as the solidification process of the same is accelerated.
In the manufacturing industry, process reliability and product quality are always in the foreground. The formation of deposits in the water-carrying channels has a negative influence on tools and heat exchangers of any kind, e.g. B. by lime, rust or other dirt particles. By using the newly developed WRG tool cleaning device, these residues are removed quickly and easily with the aid of a specially developed acidic, environmentally friendly cleaning solution.

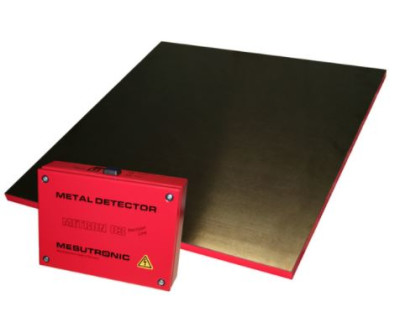

METRON 03 SL COMPACT PLATE METAL DETECTOR FOR THE INSTALLATION IN SMALL LOAD BELT CONVEYORS.

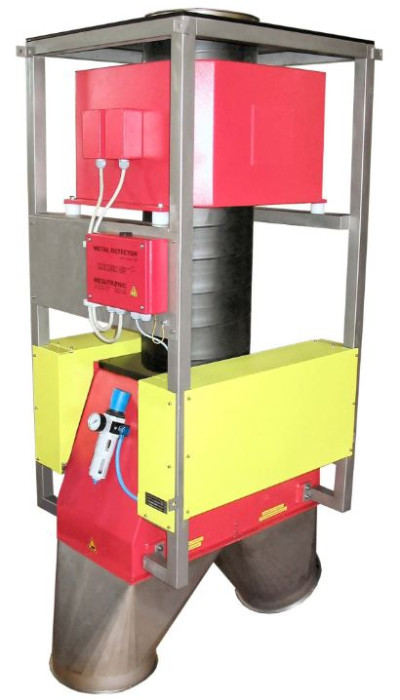

METAL SEPARATOR FOR THE INSPECTION OF GRANULES AND FLAKES IN FREE FALL

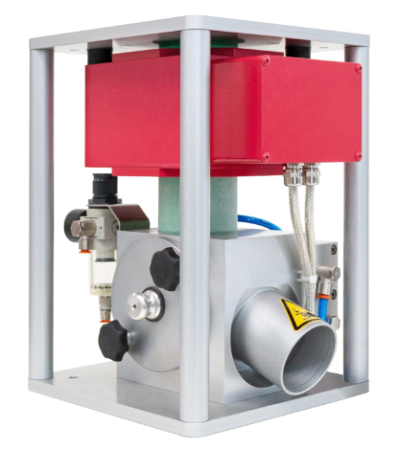

FOR INTERMITTENT VACUUM CONVEYING LINES

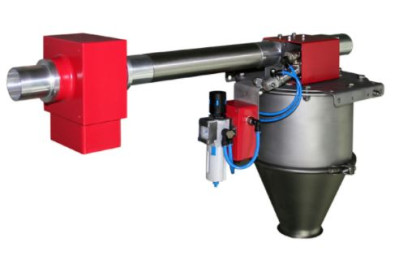

METAL DETECTOR FOR THE INSTALLATION IN PNEUMATIC CONVEYING LINES

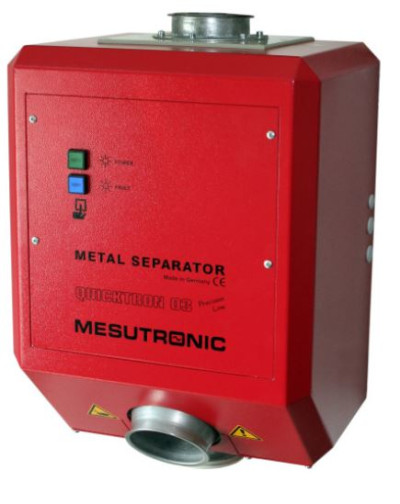

Metal separator for installation in Free fall pipes

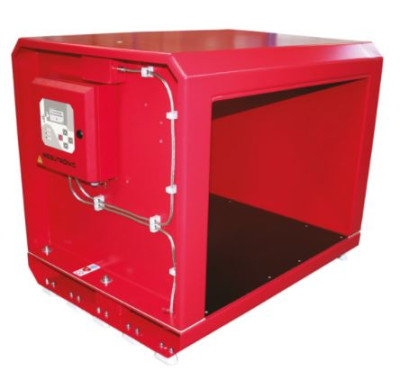

DIVERTIBLE TUNNEL METAL DETECTOR FOR INSTALLATION IN BELT CONVEYORS, VIBRATORY CHUTES AND MATERIAL SLIDES.
Hopper Loaders with single phase motor for smaller processing machines Manufactured from stainless steel and fitted with a hinged top, these models are easy to clean and maintain. The integrated acoustic hood of single phase conveying fan keeps noise level to a minimum. The programmable micro-processor control unit is designed for option such as mixer valve and cleanout valve which can be easily fitted at a later date.
The Venturi loader TOPfeed works according to the venturi principle and offers an easy feeding of small and medium sized processing machines with plastic pellets. It requires compressed air supply and is very easy to handle.
For the feeding of processing machines, day bins and drying silos. The separators AX2084 and AX2584 in a centralized vacuum conveying system are the economic form of supplying material to processing machines. Stainless steel design with hinged top, adjustable discharging flap with outside installed magnetic switch and an interchangeable feeding pipe enables feeding systems with a conveying duct of 38 and 50 mm. An integrated conveying valve can be used for interconnected conveying ducts with a troublefree function.
The new VISMEC dust separator is a device that removes dust from the plastic by static electricity and guarantees perfect quality on the final product. This is an innovative close-loop system that keeps dust and dirt from sticking to the electrostatically charged surface. The dust does not polymerize and creates impurities on the surface. The Vismec Dust Remover is therefore a must for high-tech and quality production and perfect for lens, medical and high-precision applications.
Silos mixer manufactured in iron with hopper for loading the granules from the bottom, with 500 lt. 16500 lt. capacity belt driver mixer tube and access door for cleaning.
Only consistent regrind in a defined grain size, dedusted and demetallised form, guarantees constant product respectively part quality. The different uncontrolled melting processes in the screw, with unequal material sizes will be avoided with our regrind material preparation.
For use with bulk goods in the plastic processing, food, chemical and pharmaceutical sectors. The best solution for handling BIG-BAGs, in order to bring the bulk goods to the processing machines by means of a suction conveyor
For use with bulk goods in the plastic processing, food, chemical and pharmaceutical sectors. The best solution for the handling of bagged goods, to bring the bulk goods to the processing machines by means of a suction conveyor
Outdoor and indoor silos for storing raw materials, mixed goods and finished products are a prerequisite for a meaningful automation of the material feed. In the food, chemical and plastics industries, silos made of aluminum are used almost exclusively today. They are corrosion and weather resistant, maintenance-free and have an unlimited shelf life. We offer storage silos made of aluminum or stainless steel for economical storage of raw materials with high throughput rates. Storage containers in sizes from 5 to 200 cbm are available, as well as silos with several chambers for storing different materials. The silos are equipped for loading by tank trucks. Alternatively, bag feeding stations with a high conveying capacity can be supplied.

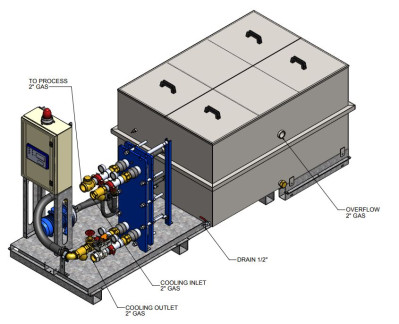

Anschlussfertige Wassertank ab 1000 l Inhalt inkl.
Anschlussfertige Wassertanks ab 1000 l Inhalt inkl.
Automatic systems for film preparation: Whether solid films or die-cutting grids with or without thermoformed parts - the right infeed system masters the task. The RotoCutters with wide infeed are extremely quiet. Integrated into the thermoforming line, continuous and adapted film feeding is ensured.
Unit is ergonomically designed to fit into narrow locations near the machine
Der Magnet für den Einfülltrichter gehört zu den Grundtypen von Magnetabscheidern und zeichnet sich durch einige Vorteile aus: einfache und schnelle Lösung, niedrige Investitionskosten, einfache Installation. Verwendet wird er vor allem in der Kunststoffindustrie bei der Verarbeitung von Regranulat oder zerkleinertem Material (Granulat). Er ist mit sehr starken Neodym-Magneten bestückt, die in der Lage sind, sehr kleine Metallverunreinigungen, die sich im Kunststoffgranulat befinden können, aufzufangen.
Fail-safe storage of system parameters Digital evaluation process for best results Process and condition monitoring Standardized system with a wide range of applications Robust design for long service life
The latest release of our reliable moisture analyzer for measuring water content in plastics
Den wachsenden Ansprüchen moderner Spritzereien bezüglich Prozesskontrolle, Prozessdatenerfassung und Verknüpfung von Spritzgießmaschine, Werkzeug und Temperierung werden wir mit unserer Eigenentwicklung ORCA gerecht. Das Temperiersystem arbeitet wartungsfrei und ermöglicht ein berührungsloses Messen der Temperiermedien Wasser bzw. Öl. Hohe Prozesssicherheit, einfache Bedienung, optimale Volumenstromauslegung und unkomplizierte Integration in die Spritzgießmaschine sind weitere Eigenschaften, mit denen wir bereits zahlreiche Kunden überzeugt haben. Die Temperiersysteme gelten als die modernsten ihrer Art und bewähren sich bei namhaften Automobilherstellern und führenden Kunststoffverarbeitern.
The Getecha pre-cutters cut thicker sheet edge trims directly at the extrusion line.
suitable for separating pieces and sprues of different thickness, used in line at the machine exit with loading belt. The rotating separator unit is available in the roller version (manually controlled) or with perforated cover (with holes size to be defined).
to detach the pieces from the sprues, with variable speed through a handwheel. It is equipped with a conveyor belt with paddle or roller separator for the separation of the parts.
The Sweeper system is designed to automatically remove material from an Octobin container without the need for human intervention. The SWEEPER gets its name from the fact that it continuously "sweeps" the top level of the Octobin's contents to the outer edges. The material is sucked up by the rotating vertical pick-up tube assembly, which in turn comprises a rotating flexible hose and rod assembly. As the pick-up tube assembly rotates, the material is drawn into the manufacturing process through the vertical section

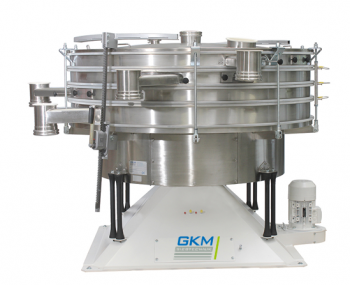

The product is continuously fed into the centre of the top screen, from where it spreads out evenly to the outside across the entire screening surface. The finer particles fall through the screen near the centre and the coarser ones successively towards the periphery. The material is moved in a spiral pattern with increasing acceleration of the particles the further they are from the centre, with the result that even those particles which are almost the same size as the screen mesh are screened. All the separated fractions are discharged through the lateral outlets. The screening process is repeated again and again on each deck.
Vibrating sprue separator made of stainless steel, which separates the sprues from the molded parts of different thicknesses. The separating unit is equipped with pipes that allow the parts to be separated through the vibration. A grinder for the sprues can be placed under the vibrator
